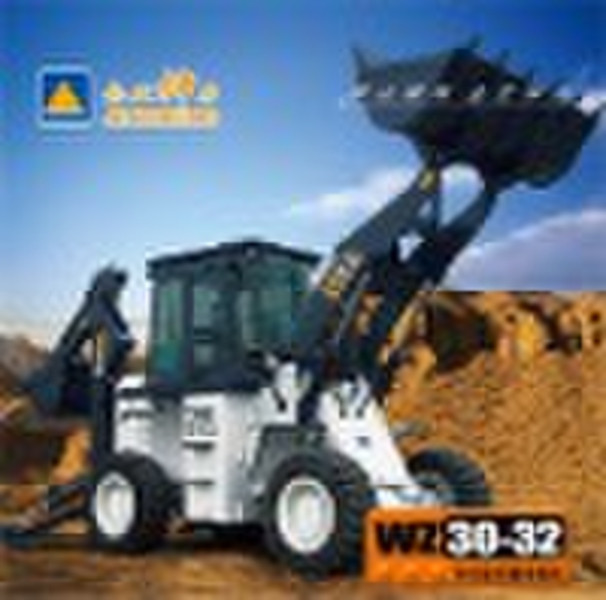

Loader Backhoe

WZ30-32 Main feature: Adopt the Yuchai engine which is powerful and with low maintenance. It has the high power and good performance ability. The transmission part adopts the mature component of ZL30 series loader. It has high safety factor. The leading articulated frame, with the front and axle bridge rationally distributed, makes it has exceptional stability when loading and excavating. Pneumatic valve control system makes car-stopping brake with urgent brake. So it is safer when braking. The operation devices are designed according to humanization. Firstly adopts the pivot control system in the backhoe loader. The whole day-lighting closed drivers cabin is furnished with the system of the air conditioner, ROPS system. It is safe and comfortable, and the visual field is broad. Various instruments such as four in one bucket, crash hammer can be chosen. WZ30-32 technical parameter: ITEMSPECIFICATIONUNITBUCKET WIDTH2470MMWHEEL BASE2770MMTREAD1700MMMIN GROUND CLEARANCE340MMBUCKET CAPACITY1.8CBMDUMPING CLEARANCE2750MMDUMPING REACH930MMMAX.BREAKOUT FORCE112KNTOTAL CYCLING TIME11.5SMIN.TURN RADIUS5674MMDIG BUCKET CAPACITY0.3CBMDIG BUCKET WIDTH722MMMAX.DIGGING DEPTH4500MMMAX.EXCAVATING RADIUS5430MMTURNING POINT OF DIGGING85+-DEGREE1ST(F/R)6.2/8KM/H2ND((F/R)12/28.5KM/H3RD20KM/H4TH33KM/HL*W*H8500*2200*3450MMOPERATING WEIGHT9500KGMAX.GRADEABILITY20DEGREEDISCHARGE ANGLE AT TOP H45DEGREECHASSIS STEERING ANGLE35 DEGREESWINGING ANGLE OF REAR AXLE 10DEGREEENGINE MODELYC6108ENGINE TYPE4STROKE WATER COOLING UPRIGHTRATED POWER /RATED SPEED92KW/2300R/MIN
